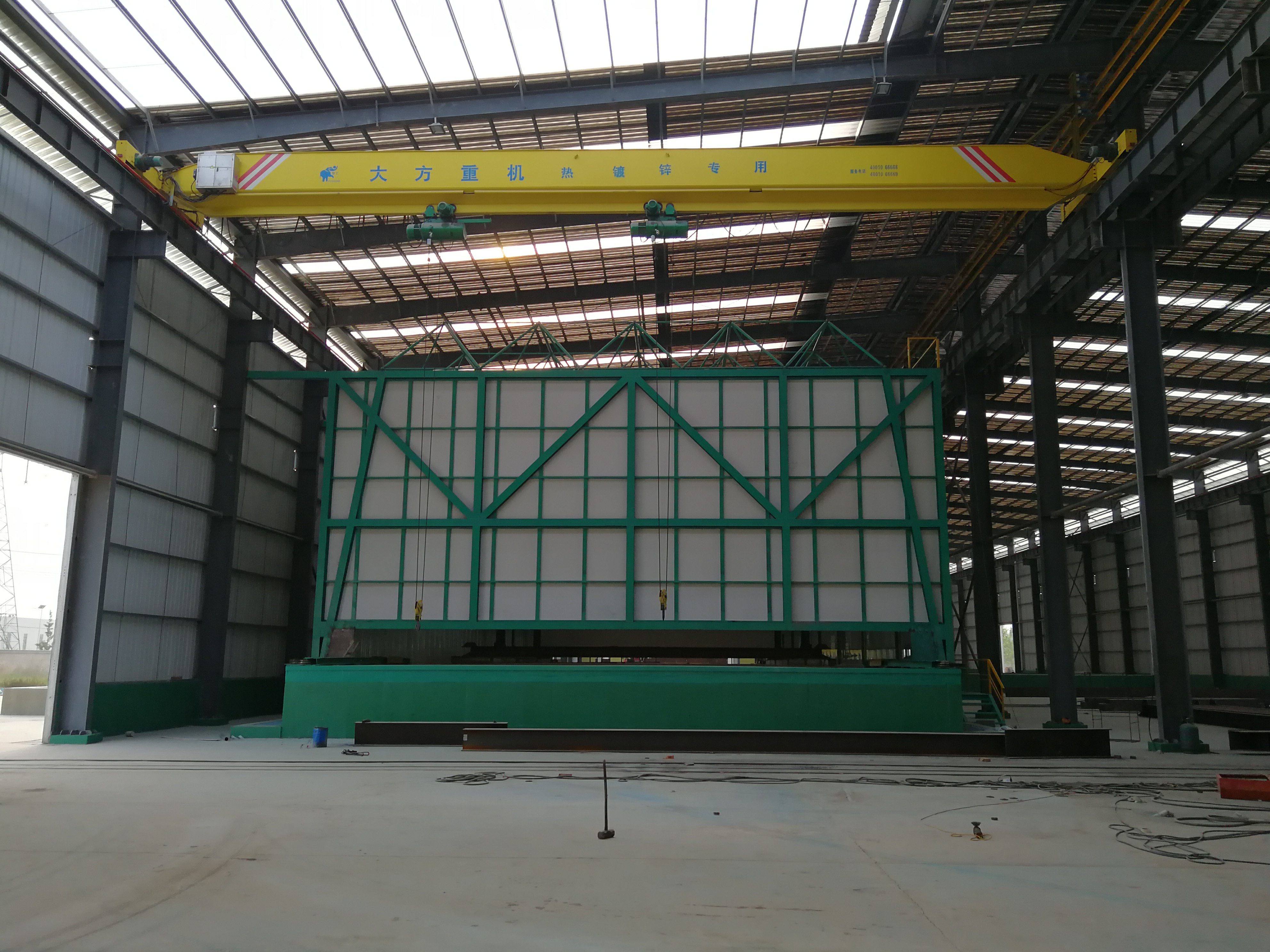

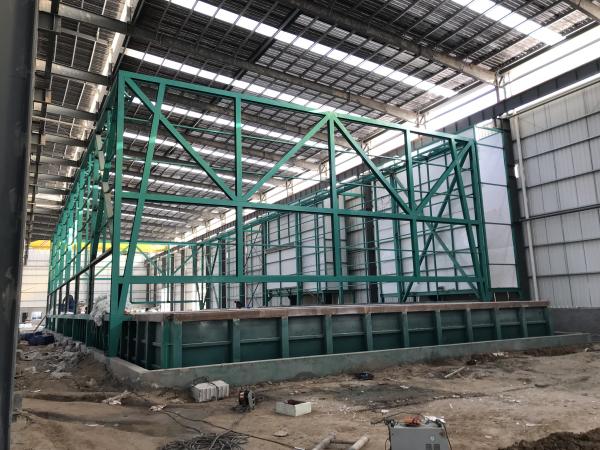

Acid fume close room

Acid fume close room

Acid mist absorber

1.The acid fume during pickling is drawn to the absorption tower by the induced draft fan through the channel

2.Using 1 water spraying + 1 alkali spraying system in series for purification treatment.

3.The first tower uses water spraying to clean 80% acid fume to generate dilute hydrochloric acid, which can be used to clean jigs. The reaction between dilute hydrochloric acid and zinc on jigs can produce ZnCl2, which can be used to make flux agent.

4.The second tower is sprayed with alkali liquor, and the remaining acid is neutralized and Compliance discharge.

5.Packing material is put in the tower to increase the contact area between water mist and acid fume, so as to achieve better washing effect.

6.The absorption tower and pipeline are made of PP material, welded by heat fusion, connected by casing, and external are strengthened by welding of PPmaterial flange.

7.Fans use negative pressure to extract the acid fume.

8.The acid fume is discharged outward through chimneys.

Wuxi CMC machinery Co., Ltd. is located in wuxi, Jiangsu province, near Shanghai, which is specializing in designing, manufacturering, sales and service of light pole machines.

Our company has own unique technology and good customer base in the development and production of light pole machines complete line. Our main products include cut to length line, CNC tandem hydraulic press brake, base plate welding machine, CNC light pole door cutting machine, high mast assembly & straightening machine, CNC portable flame cutting machine, gantry type welding machine for high mast, steel plate slitting machine, light pole shut-welding machine, hot dip galvanizing equipment and so on.

Our self-developed cut to length line, output from steel coil to isosceles trapezoidal plate directly. It has high automation, fast speed, and obtained the national new practical patent. Based on CNC tandem hydraulic press brake, we have made many improvements, making the machine especially suitable for the rapid and efficient production of light poles. To meet customers’ demands, we developed CNC light pole door cutting machine, base plate welding machine, automatic double / four head drilling machine, high mast automatic welding machine, etc.. we continuously optimize and improve our products to meet the light pole industry. It greatly changes the situation of manual work and improve the quality and efficiency of light pole production.

More than 80% of our products are exported to overseas markets, such as Thailand, Malaysia, India, the United States, Mexico, Brazil, Russia, Latvia, kazakhstan, Algeria, Egypt, Ethiopia, the Middle East, etc.

Our engineers have rich experience in installation and commissioning abroad, good skills in English communication, technical skill and remote service ability to solve problems.

After years of running, we have become a team with innovative working habits, close cooperation with each other, holding the key technology of light pole machines, growing up to a 100% trustworthy team.

More than light pole machine produciton, we also set up a joint venture named Jiangsu XinLingYu Intelligent Technology Co., Ltd. in Xuzhou city, Jiangsu province in 2017 year. It fabricates hot dip galvanizing line/equipments, can meet customers' requirements of anti-corrosion treatment for light pole and high mast pole. Based on years of experience and knowledge of the original hot-dip galvanizing, we continue to develop and innovate the HDG process. It has reached a very advanced technical level. We have supplied both light pole machines / lines and hot-dip galvanizing lines to multiple customers.

At present, our company runs very stably, has good financial condition and step in a strong growth period.

We hope to establish a good relationship with more customers, develop and make progress synchronous.
