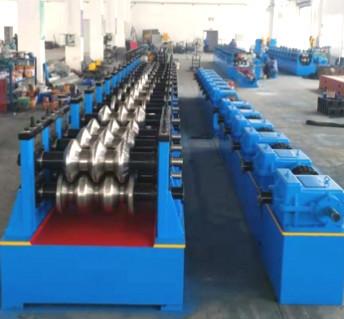

Three waves Guardrail Roller Forming machine

I.Basic machine parameters

1. Mechanical properties and specifications of raw materials
2. Material: Q345B galvanized sheet
3. Thickness: 2.5～3.0mm
4. Width: 450-476mm
5. Weight: 65KG
6. Specifications of products
7. Product: by product drawing
8. Product width: 310mm ± 5mm
9. Product height: 81mm ± 5mm
10. Product specifications
11. Forming method: Cold roll forming
12. Production speed: ≤10m / min
13. Feeding direction: left feed
14. Main voltage: 380V, 50Hz
15. Unit total power: about 20.7KW
16. Drive shaft bearing: 6026
17. Turbo lift: SWL10-3 / 23-FU3
18. Main drive motor: YVP180M-4-15
19. Reducer: ZQ500-48.57
20. Wallboard material: A3
21. Shaft material: 40
22. Mold material: Gcr15

II.Overview of equipment structure

The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.
