    Steel Two Waves 3.0mm Guardrail Roll Forming Machine

    Ask Lasest Price
    Brand Name : CMC
    Model Number : 31085
    Delivery Time : According to the requirements
    Supply Ability : According to the actual situation
    Price : According to the machine requirements
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    Steel Two Waves 3.0mm Guardrail Roll Forming Machine


    I.Basic machine parameters

    1. Mechanical properties and specifications of raw materials

    Material: Q345B galvanized sheet

    Thickness: 2.5~3.0mm

    Width: 450-476mm

    Weight: 65KG

    Specifications of products

    Product: by product drawing

    Product width: 310mm ± 5mm

    Product height: 81mm ± 5mm

    Product specifications

    Forming method: Cold roll forming

    Production speed: ≤10m / min

    Feeding direction: left feed

    Main voltage: 380V, 50Hz

    Unit total power: about 20.7KW

    Drive shaft bearing: 6026

    Turbo lift: SWL10-3 / 23-FU3

    Main drive motor: YVP180M-4-15

    Reducer: ZQ500-48.57

    Wallboard material: A3

    Shaft material: 40

    Mold material: Gcr15


    II.Overview of equipment structure

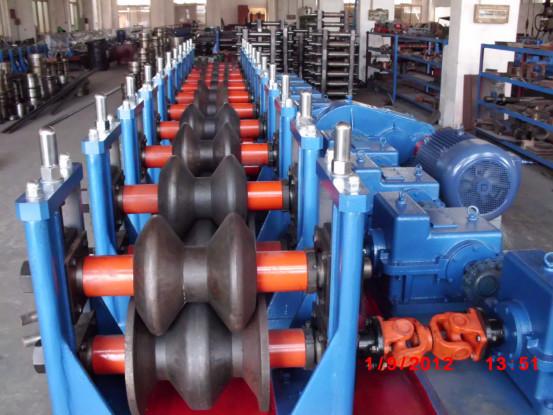

    The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.


    III.Equipment configuration checklist


    No


    Part Name


    Quantity

    1

    Forming mould


    One set of molds on each side

    2

    15KW drive motor


    1Set

    3

    Forming mold shaft


    3Sets

    4

    Turbo lift


    3Sets

    5

    Lifting drive motor


    1Set

    6

    ZQ500 reducer


    1Set

    7

    Electrical console


    1Set

    8

    Equipment anchor bolt


    1Set


    IV.Our service

    · Sample are available and free.

    ·

    · We will make delivery of the goods 15-30 days after get deposit.

    ·

    · All our goods are with best price and reasonable price.

    ·

    · We can make delivery by sea ,by air or express.


    V.Bending machine equipment structure diagram:



    Quality Steel Two Waves 3.0mm Guardrail Roll Forming Machine for sale
