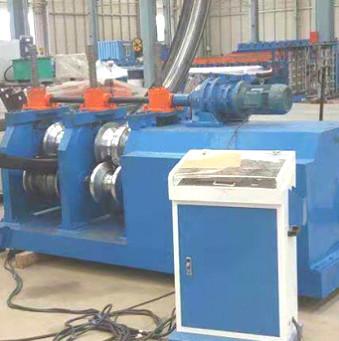

    Guardrail Steel 15KW 3 Roller Plate Bending Machine


    Guardrail plate bending machine


    The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.

    a. Thickness : 2.5--4mm (±0.2mm) , Width: 750mm±5mm,
    b.Yield strength is 235Mpa, side bend less than 10mm( base on 5mm),
    c.Coil Inner-diameter:φ508~φ600mm; Coil Inner-diameter: ≤φ1800mm,
    d.Coil weight: ≤10T


    I.Basic machine parameters

    1. Mechanical properties and specifications of raw materials
    2. Material: Q345B galvanized sheet
    3. Thickness: 2.5~3.0mm
    4. Width: 450-476mm
    5. Weight: 65KG
    6. Specifications of products
    7. Product: by product drawing
    8. Product width: 310mm ± 5mm
    9. Product height: 81mm ± 5mm
    10. Product specifications
    11. Forming method: Cold roll forming
    12. Production speed: ≤10m / min
    13. Feeding direction: left feed
    14. Main voltage: 380V, 50Hz
    15. Unit total power: about 20.7KW
    16. Drive shaft bearing: 6026
    17. Turbo lift: SWL10-3 / 23-FU3
    18. Main drive motor: YVP180M-4-15
    19. Reducer: ZQ500-48.57
    20. Wallboard material: A3
    21. Shaft material: 40
    22. Mold material: Gcr15

    II,Overview of equipment structure


    The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.


    III,Equipment configuration checklist


    No

    Part Name


    Quantity

    1

    Forming mould


    One set of molds on each side

    2

    15KW drive motor


    1Set

    3

    Forming mold shaft


    3Sets

    4

    Turbo lift


    3Sets

    5

    Lifting drive motor


    1Set

    6

    ZQ500 reducer


    1Set

    7

    Electrical console


    1Set

    8

    Equipment anchor bolt


    1Set
