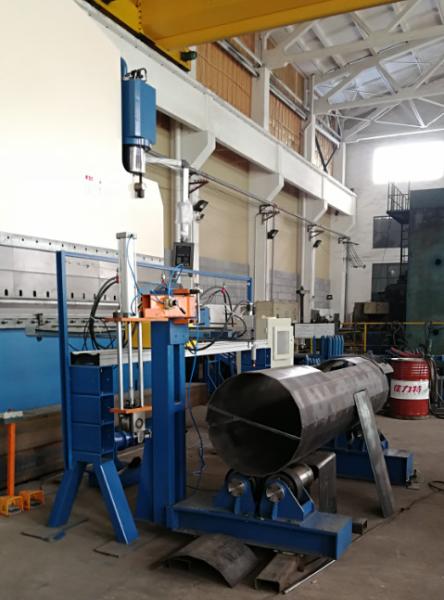

Model 680/2000 CNC 2000mm Light Pole Door Cutting Machine

Application:

It is suitable for conical pole, round pole, octagonal light pole and highmast door CNC cutting, Also it can flat plate . The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.

The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is much better then flame cutting.


Main parameters:

No.ItemParameter
1

Max. cutting length, X axis

2000mm (for once stroke cutting)
2

Max. cutting length, X axis

1500mm
3

Rotation angle, A axis

Any angle 0~360 degree
4Min outer diameter58mm
5Max outer diameter680mm
6Max.length for pole12000mm
7Max.thickness for highmast8mm
8Plasma source

Hypertherm Powermax 65

(Made in USA)

9Suggestion thickness for making hole and quality cutting.8mm
10Quality Cutting speed ,thickness 4mm4250mm/minute
11Quality Cutting speed ,thickness 6mm2550mm/minute
12Quality Cutting speed ,thickness 8mm1700mm/minute
13

Max plasma edge cutting thickness(manual holding way)

Base on Plasma source

14mm

14Light pole door cutting timefor one normal light pole electrical door, the cutting time is about 30~40 seconds)
15Main motor/BrandStepless motor/Chinese
16CNC systemSi Dafeng(SF-2100S)
17Nesting SOFTWARESmartNest
18Control axis3 axis, X,Y,A
19CNC Plasma cutting torch1 set
20Arc voltage height controllerHEAVTH HP105
21height DEVICEPlasma Torch height moving device, 1set
22Environmental temperature0-45℃
Option:special big cabinet with cabinet type air condition , the CNC system and Plasma power souce inside. ( it needs additional cost)0-55
23Humidity<90%, no condensation
24SurroundingsVentilation, no big shake
25

Input voltage

(Can be made according to buyer’s country voltage requirement.)

Single phase,220V, 50HZ

Three phases, 380V, 50HZ
